MPPT Charge Controllers

KhaGa & KaGha Series

KhaGa is a versatile, high efficiency Solar MPPT Charge Controller designed to support multiple battery chemistry for solar applications such as home lighting, mini-mast light, and solar street lights. It ensures maximum power extraction from the solar panel and implements 4-stage charging of battery with battery low load disconnect to protect battery from deep discharge. KhaGa implements a DC Energy meter and metrology functionality that enables safe, reliable and long life of the system components.

Highlights

  • Automatic Dusk to Dawn operation
  • Time based dimming up to 6 segments
  • Patent pending energy dimming
  • MPPT Solar charge controller (Extracts up to 30% more)
  • Multi chemistry 4 stage battery charging algorithm
  • High efficiency dimmable boost LED light driver
MPPT Charge Controllers
Dusk to Dawn
Dim Profile
Energy Dim
Protection
Connect

Indicators

  • Charging active
  • Battery Low
  • Empty

Protection

  • Battery Low Cut off
  • LED Open Fault – Auto recovery
  • Battery reverse protection

Options

  • Sensor integration
  • Motion detection
  • Temperature & Humidity
  • Radios
  • GSM / WiFi / BLE / NBIoT
  • <1GHz
  • TruHybrid
  • Grid + Solar

Communication

  • Command brightness level remotely
  • Parameters available from the Luminary
  • Status → Charging | Light ON | Faults
  • Battery voltage
  • Charging current
  • Panel voltage / LED string voltage
  • Power – Charging and Discharging
  • Energy – Charge and Discharge
Variant

KaGha — Smart Solar MPPT

KaGha is a smart Solar MPPT Charge controller designed for high efficiency and battery protection, ensuring robust and reliable operation. Supports multiple battery chemistry, communication for remote monitoring and control. LCD display is provided for local parameter monitoring and optional USB charging port.

  • LCD display for local monitoring
  • USB charging port (optional)
  • Remote monitoring & control
  • Multiple battery chemistry support
KaGha MPPT Charge Controller
Technical Data

Specifications

Charging Algorithm 4-stage (Bulk, Absorption, Float, Equalize)
MPPT Efficiency Up to 30% more power extraction
Battery Chemistry Multiple (Lead Acid, Li-Ion, LFP)
Display Optional LCD
Wired Communication RS232, RS485 (optional)
Wireless Communication BLE, WiFi, LoRaWAN (optional)
Protection Battery reverse, deep discharge, overcharge
Metering DC Energy meter with metrology
Gallery

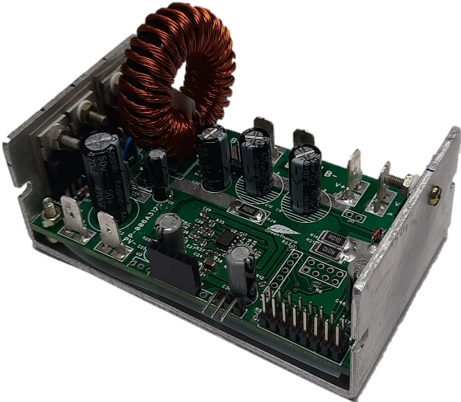

Product Images

MPPT Charge Controllers
MPPT Charge Controllers
Common Questions

FAQ

What battery types does KhaGa support?
KhaGa supports multiple battery chemistries including Lead Acid, Lithium Ion, and LFP batteries, with configurable charging profiles for each type.
What communication options are available?
KhaGa supports both wired (RS232, RS485) and wireless (BLE, WiFi, LoRaWAN) interfaces depending on the variant selected.
